DruML S1 OEM Trigger Basket

Do you dream of making your favorite snare digital? Is your musical creativity being limited by not being able to make MIDI laser beam sounds with hand gestures on your floor tom??  Well, E2D is the new A2E!

We’ve been asked a bunch about direct purchase of triggers. So we decided to offer the core trigger assembly on its own—giving OEMs and advanced users the freedom to integrate it into whatever shell or setup they want without having to modify anything on the drum.

One of the things that makes DruML special is the fact it really doesn't matter a whole lot what kind of shell you put it in.   We've trained it in hundreds of different configurations between 10-16".

These baskets will fit a majority of setups, but if your drum doesn't have a bearing edge, it may sit high enough to require proper centering before cranking down the tension.

We're happy to help you get up and running, but if you want plug-and-play, you should order an assembled drum.

Features:

• Class-compliant USB as well as DIN (5-pin) MIDI interface (Works with practically everything!)
• Analog TRS passive output if you want to play it with your old-school module
• Driver-free firmware updates over MIDI
• Capacitive touch and gesture sensing
• DruML Studio (PC, iOS, Android) for intuitive configuration and updates
• Continual high-precision positional sensing (even with hand muting and rimshots)
• Left-vs-right handedness signals (Supported in modern VSTs such as Superior Drummer 3 that is playing-style aware)
• Cross-stick and palm-muting support

• Ear-pleasing ultra-low latency

• Map hand gestures to MIDI notes
• DMX fixture control support (Lights, confetti cannons, etc) via internal D1/A1 plug
• MIDI 2.0 support with profile discovery, UMP, and high-res velocity

The Fine Print:

DruML Studio lets you train your own models, but your hardware still needs to provide clean, consistent signal for best results. We continuously improve performance by incorporating user-submitted data into each release—so your build can contribute to making the system better for everyone.

We recommend joining our discord https://discord.com/invite/Sh6BthbEcP to talk through setup/installation/etc.

If you plan on selling these when assembled, you are responsible for doing your own EMC testing in the final configuration you plan on selling it in.  We can only guarantee EMC compliance in our tested/approved builds on the site and with factory-matched cables.

Included:

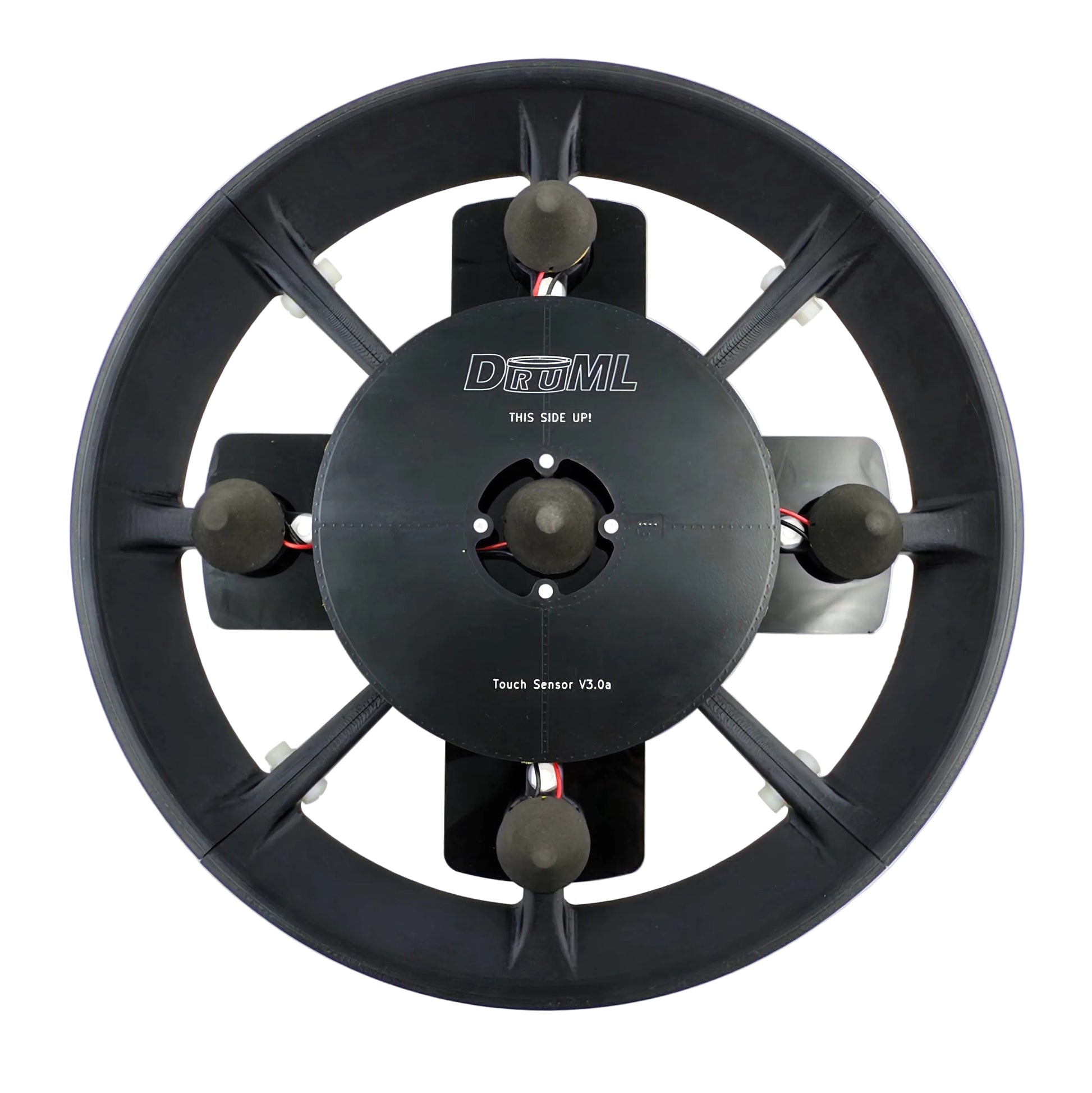

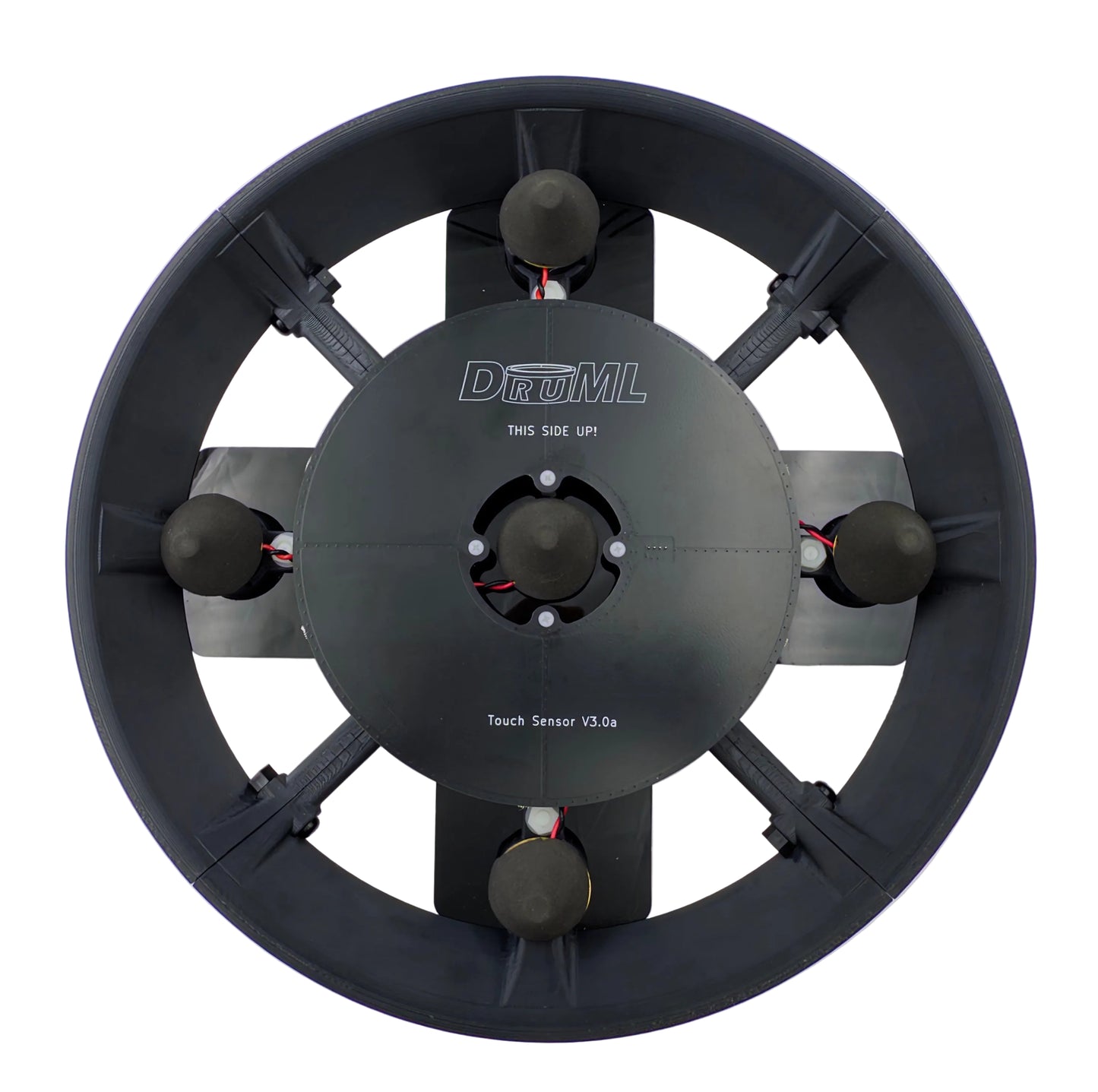

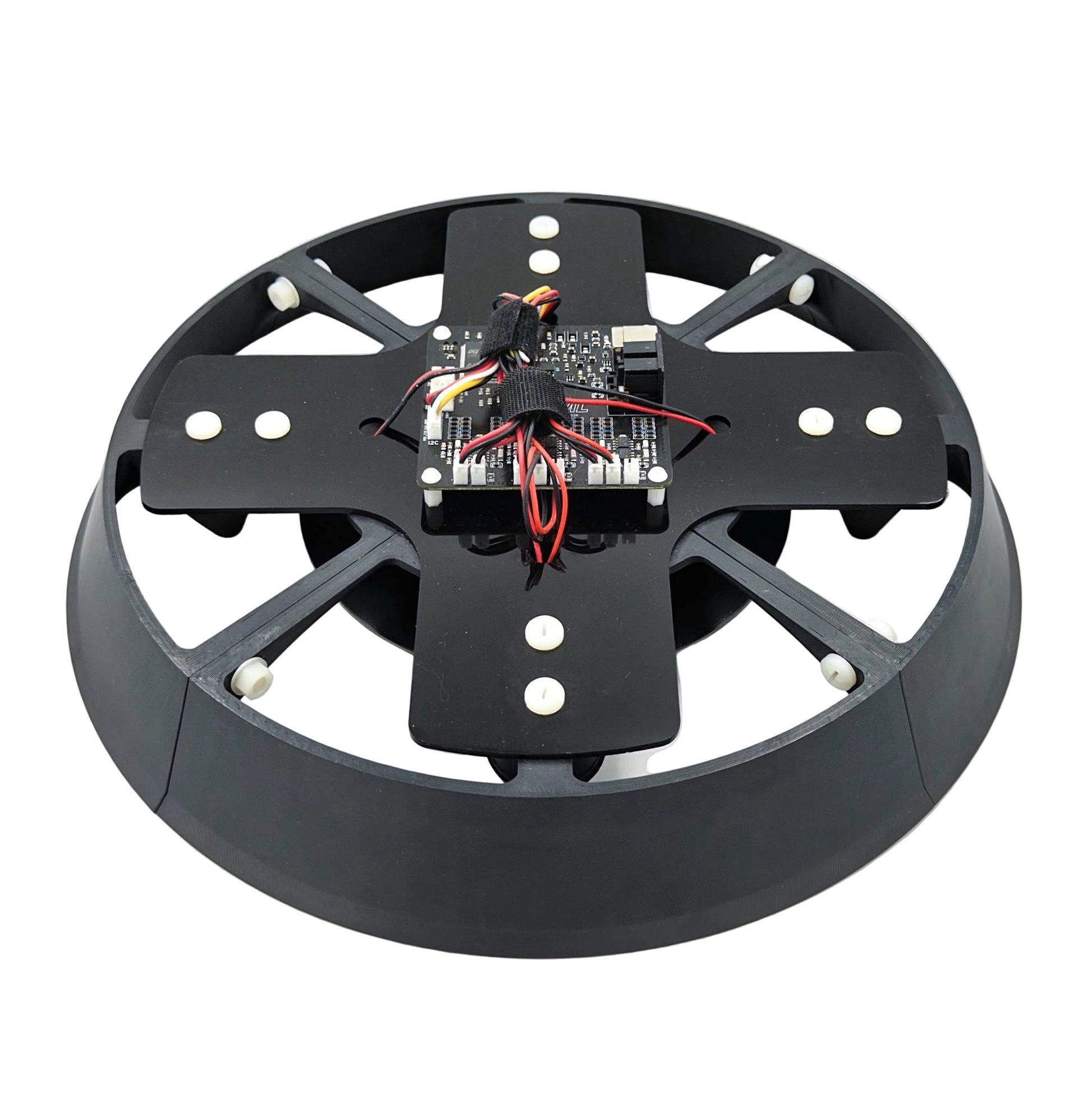

• Full DruML trigger insert assembly with trigger board and capacitive sensor
• 3D Printed to size basket (Made from ASA to balance acoustics and strength)
• USB B / MIDI 5-pin DIN Port
